Meta-data readers¶
HDF¶
meta-cli is commad-line-interface for extracting meta data from a generic HDF file like data exchange, the tomographic data format used at the Advanced Photon Source beamlines or NeXus adopted at Diamond, ESRF and Desy.
Installation¶
$ git clone https://github.com/xray-imaging/meta-cli.git
$ cd meta-cli
$ python setup.py install
in a prepared virtualenv or as root for system-wide installation.
Warning
If your python installation is in a location different from #!/usr/bin/env python please edit the first line of the bin/meta file to match yours.
Dependencies¶
pandas =>
conda install pandastabulate =>
conda install tabulate
Usage¶
View the hdf tree¶
To view the data tree contained in a generic hdf file:
$ meta tree --file-name data/base_file_name_001.h5
View the meta data¶
To view the meta data contained in a generic hdf file:

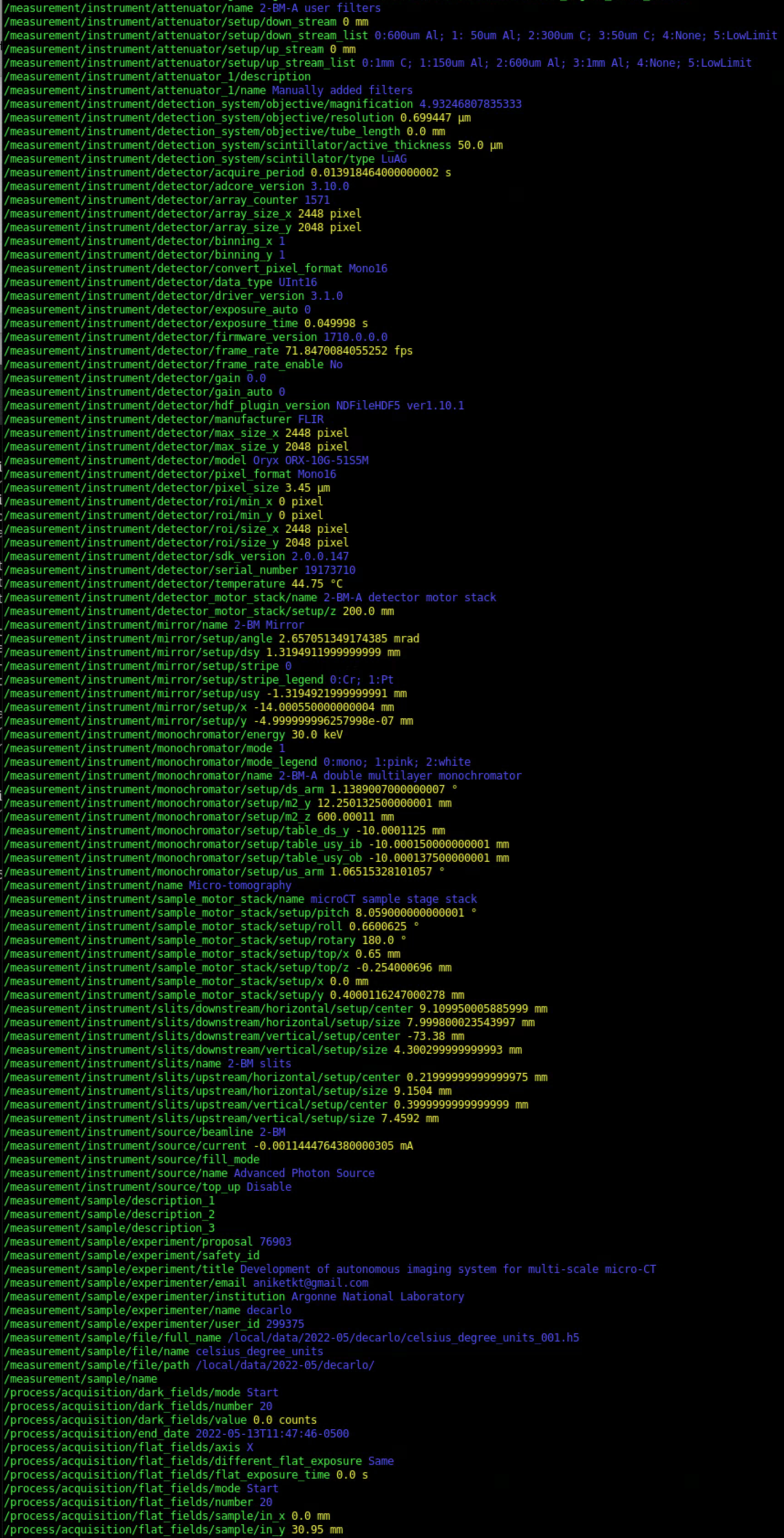

$ meta show --file-name data/base_file_name_001.h5
View a subset meta data¶
To view a subset of the meta data contained in a generic hdf file:
$ meta show --file-name data/base_file_name_001.h5 --key energy
Replace an hdf entry value¶
To replace the value of an entry:
$ meta set --file-name data/base_file_name_001.h5 --key /process/acquisition/rotation/rotation_start --value 10
Meta data rst table¶
To generate a meta data rst table compatible with sphinx/readthedocs:
$ meta docs --file-name data/base_file_name_001.h5
2022-02-09 12:30:16,983 - Please copy/paste the content of ./log_2020-05.rst in your rst docs file
The content of the generated rst file will publish in a sphinx/readthedocs document as:
2022-05
decarlo
value |
unit |
|
|---|---|---|
/measurement/instrument/monochromator/energy |
30.0 |
keV |
/measurement/instrument/sample_motor_stack/setup/x |
0.0 |
mm |
/measurement/instrument/sample_motor_stack/setup/y |
0.4000116247000278 |
mm |
/measurement/sample/experimenter/email |
Note
when using the docs option –file-name can be also a folder, e.g. –file-name data/ in this case all hdf files in the folder will be processed.
to list of all available options:
$ meta -h
Configuration File¶
meta parameters are stored in meta.conf. You can create a template with:
$ meta init
meta.conf is constantly updated to keep track of the last stored parameters, as initalized by init or modified by setting a new option value. For example to re-run the last meta with identical –file-name parameters used before just use:
$ meta docs
GE Phoenix v|tome|x m µCT¶
The GE Phoenix v|tome|x m µCT instruments generates .pca, .dtxml, .pcj and .pcp files. An example is available at G E.
Code¶
Dependencies¶
Create a new conda environment:
conda create --name nocturn python=3.9
and activate the new environment with:
conda activate nocturn
then install the following packages:
conda install xmltodict
conda install pandas
conda install openpyxl
Run¶
conda activate nocturn
python ge.py /nocturn/data/FEG230530_413
ge.py cretes an excel spreasheet called master.xlsx containing meta data as defined by the National Museum of Natural History.
If master.xlsx already exists it will append a new meta data row to the existing spreadsheet. In practice you can run ge.py multiple times to automatically populate the excel spreadsheet with meta data:
python ge.py /nocturn/data/FEG230509_407
python ge.py /nocturn/data/FEG230530_408
python ge.py /nocturn/data/FEG230530_409
python ge.py /nocturn/data/FEG230530_410
python ge.py /nocturn/data/FEG230530_411
python ge.py /nocturn/data/FEG230530_412
python ge.py /nocturn/data/FEG230530_413
will append to the Sheet1 of master.xlsx the meta data for all samples listed above
Scanco¶
Scanco instruments save data and the meta-data in an ISQ file. An example is available at Scanco. To extract the meta-data you can use the code example below
Code¶
Dependencies¶
Create a new conda environment:
conda create --name nocturn python=3.9
and activate the new environment with:
conda activate nocturn
then install the following packages:
conda install json
conda install pathlib
pip install itk-ioscanco
Run¶
conda activate nocturn
python scanco.py /nocturn/data/scanco_file.ISQ
will print the meta-data as:
"CalibrationData": "",
"CreationDate": "16-AUG-2023 14:32:47.206",
"DataRange": [
-21716.0,
32767.0
],
"Energy": 55.0,
"Intensity": 0.145,
"MeasurementIndex": 24292,
"ModificationDate": "16-AUG-2023 14:32:47.206",
"MuScaling": 4096.0,
"MuWater": 0.7032999992370605,
"NumberOfProjections": 1000,
"NumberOfSamples": 2000,
"PatientIndex": 9130,
"PatientName": "SB_WT_G3955",
"ReconstructionAlg": 3,
"ReferenceLine": 37.704,
"RescaleIntercept": -1000.0,
"RescaleSlope": 0.34713582434927287,
"RescaleType": 0,
"RescaleUnits": "",
"SampleTime": 200.0,
"ScanDistance": 12.0,
"ScannerID": 4274,
"ScannerType": 10,
"Site": 4,
"SliceIncrement": 0.006,
"SliceThickness": 0.006,
"Version": "CTDATA-HEADER_V1",
"direction": [
[
1.0,
0.0,
0.0
],
[
0.0,
1.0,
0.0
],
[
0.0,
0.0,
1.0
]
],
"origin": [
0.0,
0.0,
0.0
],
"spacing": [
0.006,
0.006,
0.006
]}
Tomcat¶
Tomcat instruments save data and the meta-data in a json file. An example is available at PSI. To load the meta-data in a dictionary and print them you use the code example below.
Code¶
Run¶
conda activate nocturn
python tomcat.py /nocturn/data/tomcat.json
will print the meta-data as:
{
"accessGroups": [
"slstomcat",
"p19555"
],
"classification": "IN=medium,AV=low,CO=low",
"contactEmail": "ElseMarie.Friis@nrm.se, peter.crane@yale.edu, krp@geo.au.dk",
"createdAt": "2023-03-02T16:19:26.096Z",
"createdBy": "slstomcat",
"creationTime": "2023-02-23T22:59:34.782Z",
"datasetName": "S266379\_10x\_",
"datasetlifecycle": {
"archivable": false,
"archiveRetentionTime": "2033-03-02T00:00:00.000Z",
"archiveStatusMessage": "datasetOnArchiveDisk",
"dateOfPublishing": "2026-03-02T00:00:00.000Z",
"isOnCentralDisk": true,
"publishable": false,
"publishedOn": "2023-07-10T14:14:21.940Z",
"retrievable": true,
"retrieveIntegrityCheck": false,
"retrieveStatusMessage": ""
},
"description": "SRXTM insights into major evolutionary transitions",
"history": [
{
"datasetlifecycle": {
"currentValue": {
"archivable": "false",
"archiveStatusMessage": "started",
"retrievable": "false"
},
"previousValue": {
"archivable": false,
"archiveRetentionTime": "2033-03-02T00:00:00.000Z",
"archiveStatusMessage": "scheduledForArchiving",
"dateOfPublishing": "2026-03-02T00:00:00.000Z",
"isOnCentralDisk": true,
"publishable": false,
"retrievable": false,
"retrieveIntegrityCheck": false,
"retrieveStatusMessage": ""
}
},
"id": "e8553257-c37c-4b39-922a-0c83a35c3c39",
"updatedAt": "2023-03-02T19:36:05.542Z",
"updatedBy": "archiveManager"
},
{
"datasetlifecycle": {
"currentValue": {
"archivable": "false",
"archiveStatusMessage": "datasetOnArchiveDisk",
"retrievable": "true"
},
"previousValue": {
"archivable": false,
"archiveRetentionTime": "2033-03-02T00:00:00.000Z",
"archiveStatusMessage": "started",
"dateOfPublishing": "2026-03-02T00:00:00.000Z",
"isOnCentralDisk": true,
"publishable": false,
"retrievable": false,
"retrieveIntegrityCheck": false,
"retrieveStatusMessage": ""
}
},
"id": "cb9a2fe8-009a-4088-81b4-755180088dd8",
"updatedAt": "2023-03-02T19:43:36.763Z",
"updatedBy": "archiveManager"
},
{
"datasetlifecycle": {
"currentValue": {
"publishedOn": "2023-07-10T14:14:21.940Z"
},
"previousValue": {
"archivable": false,
"archiveRetentionTime": "2033-03-02T00:00:00.000Z",
"archiveStatusMessage": "datasetOnArchiveDisk",
"dateOfPublishing": "2026-03-02T00:00:00.000Z",
"isOnCentralDisk": true,
"publishable": false,
"retrievable": true,
"retrieveIntegrityCheck": false,
"retrieveStatusMessage": ""
}
},
"id": "12fb47ee-5129-47e9-8540-daa925411764",
"isPublished": {
"currentValue": true,
"previousValue": false
},
"updatedAt": "2023-07-10T14:14:21.945Z",
"updatedBy": "anonymous"
}
],
"inputDatasets": [
"20.500.11935/9e9db9ec-413a-4dcf-8b43-bb6a7663a902"
],
"investigator": "ElseMarie.Friis@nrm.se, peter.crane@yale.edu, krp@geo.au.dk",
"isPublished": true,
"license": "CC BY-SA 4.0",
"numberOfFiles": 2161,
"numberOfFilesArchived": 2162,
"owner": "Else Marie Friis, Peter R. Crane, Kaj Raunsgaard Pedersen",
"ownerEmail": "ElseMarie.Friis@nrm.se, peter.crane@yale.edu, krp@geo.au.dk",
"ownerGroup": "p19555",
"packedSize": 5276518400,
"pid": "20.500.11935/c8fae0ad-270b-46d9-9daf-38fe625f4073",
"scientificMetadata": {
"beamlineParameters": {
"Beam energy": {
"u": "keV",
"unitSI": "(kg m^2) / s^2",
"v": 10,
"valueSI": 1.602176565e-15
},
"FE-Filter": "No Filter 100%",
"Monostripe": "Ru/C",
"OP-Filter1": "No Filter",
"OP-Filter2": "No Filter",
"OP-Filter3": "No Filter",
"Ring current": {
"u": "mA",
"unitSI": "A",
"v": 401.409,
"valueSI": 0.401409
}
},
"detectorParameters": {
"Actual pixel size": {
"u": "um",
"unitSI": "m",
"v": 0.65,
"valueSI": 6.5e-07
},
"Camera": "PCO.Edge 5.5",
"Delay time": {
"u": "ms",
"unitSI": "s",
"v": 0,
"valueSI": 0
},
"Exposure time": {
"u": "ms",
"unitSI": "s",
"v": 150,
"valueSI": 0.15
},
"Microscope": "Opt.Peter MB op",
"Microscope x position": {
"u": "mm",
"unitSI": "m",
"v": 138.26,
"valueSI": 0.13826
},
"Microscope y position": {
"u": "mm",
"unitSI": "m",
"v": -23.71,
"valueSI": -0.023710000000000002
},
"Microscope z position": {
"u": "mm",
"unitSI": "m",
"v": 52,
"valueSI": 0.052000000000000005
},
"Millisecond shutter": "not used",
"Objective": 10,
"Scintillator": "LuAg:Ce 20um (C20-76)",
"X-ROI End": 2560,
"X-ROI Start": 1,
"Y-ROI End": 2160,
"Y-ROI Start": 1
},
"postProcessingParameters": [
{
"commandLineArgument": {
"angle": "0",
"angleShift": 0,
"anglesFile": "",
"axisPositionIn2piScan": "",
"binSize": "1,1",
"centerOfRotation": "1231.2",
"corBandParams": "0.125,0.5,0.5,0.875",
"correctionOnly": false,
"correctionType": 7,
"createMissing": true,
"cutoff": "0.5",
"darkMedian": false,
"decompositionLevel": "0:0",
"differenceInStandardDeviation": 0,
"doFBPA": false,
"doNotCropReconstructions": false,
"doSimulateImages": false,
"doTestRun": false,
"filter": "parz",
"firstIndex": 1,
"flatMedian": false,
"geometry": "6",
"gridRecRoiParameters": "726,198,1838,2390",
"imageSize": "",
"inputSource": "/sls/X02DA/Data10/e19555/disk2/S266379_10x_/S266379_10x_.h5",
"inputType": "2",
"jsonFile": false,
"jsonMetaDataFile": "",
"keepSinograms": "0",
"logFile": "/sls/X02DA/data/e19555/Data10/disk2/S266379_10x_/S266379_10x_.log",
"maxRingWidth": 0,
"maxTif": "2.622e-03",
"mbaFilterParams": "",
"minTif": " -2.594e-03",
"moosmannFilterParams": "",
"numberOfGPUs": 0,
"pSWF_LUT_length": 0,
"paganinFilterParams": "",
"pathToPixelmaskFile": "",
"preFlatsOnly": false,
"prefix": "S266379_10x_",
"pswf": 0,
"recOnlySelect": "0,0",
"recOutputDir": "",
"reconstruct": "abs",
"ringRemoval": "0",
"roiParameters": "0,0,0,0",
"scaleImageFactor": 1,
"scanparameters": "1500,10,100,0,0",
"senderReceiverRatio": "8",
"separateAngles": "/sls/X02DA/data/e19555/Data10/disk2/S266379_10x_/S266379_10x_.h5",
"separateCorrection": "",
"shiftCorrection": false,
"sigmaInGaussFilter": "0",
"sinogramDirectory": "/sls/X02DA/Data10/e19555/disk2/S266379_10x_/sin",
"skipPiProj": true,
"stepLines": 1,
"stitching": "N",
"stripeOrientation": "v",
"stripeRemoval": "",
"thresholdInZinger": 0.95,
"tifConversionType": "8",
"underSampleSinoFactor": 1,
"verbose": 0,
"waveletPaddingMode": "0",
"waveletType": "0",
"widthOfSmoothingKernel": 9,
"zeroPadding": "0.5",
"zinger": ""
},
"gitRepositoryLink": "f9e3d5f356f014a4d55c53901f2ba9c5dbdea97e",
"postProcessingTimestamp": "2023-02-23T22:59:34.782Z"
}
],
"scanParameters": {
"Angular step": {
"u": "deg",
"unitSI": "rad",
"v": 0.12,
"valueSI": 0.0020943951023931952
},
"File Prefix": "S266379_10x_",
"Flat frequency": 0,
"Number of darks": 10,
"Number of flats": 100,
"Number of inter-flats": 0,
"Number of projections": 1500,
"Raw Source": "/sls/X02DA/Data10/e19555/disk2/S266379_10x_/",
"Rot Y max position": {
"u": "deg",
"unitSI": "rad",
"v": 180,
"valueSI": 3.141592653589793
},
"Rot Y min position": {
"u": "deg",
"unitSI": "rad",
"v": 0,
"valueSI": 0
},
"Rotation axis position": "Standard",
"Sample In": {
"u": "um",
"unitSI": "m",
"v": 0,
"valueSI": 0
},
"Sample Out": {
"u": "um",
"unitSI": "m",
"v": 5000,
"valueSI": 0.005
},
"Sample folder": "/sls/X02DA/data/e19555/Data10/disk2/S266379_10x_/",
"Sample holder X-position": {
"u": "um",
"unitSI": "m",
"v": 7835.4,
"valueSI": 0.0078354
},
"Sample holder Y-position": {
"u": "um",
"unitSI": "m",
"v": 2560.1,
"valueSI": 0.0025600999999999996
}
}
},
"size": 5272583164,
"sourceFolder": "/sls/X02DA/Data10/e19555/disk2/S266379_10x_/rec_8bit_abs",
"sourceFolderHost": "x02da-cons-bl-9.psi.ch",
"techniques": [],
"type": "derived",
"updatedAt": "2023-07-10T14:14:23.015Z",
"updatedBy": "anonymous",
"usedSoftware": [
"Schindelin, J.; Arganda-Carreras, I. & Frise, E. et al. (2012), \"Fiji: an open-source platform for biological-image analysis\", Nature methods 9(7): 676-682, PMID 22743772, doi:10.1038/nmeth.2019",
"Marone, F. et al. (2017), \"Towards on-the-fly data post-processing for real-time tomographic imaging at TOMCAT\", Advanced Structural and Chemical Imaging 3(1): 1, doi:10.1186/s40679-016-0035-9"
],
"version": "3.1.0"
}
Zeiss Xradia¶
Zeiss Xradia instrument use a proprietary xrm/txrm data and meta data format. A python reader is avaialble at DXChange .
Bruker SkyScan 1272¶
The Bruker SkyScan 1272 instruments generates .log files for data collection and data analysis. An example is available at Bruker.
